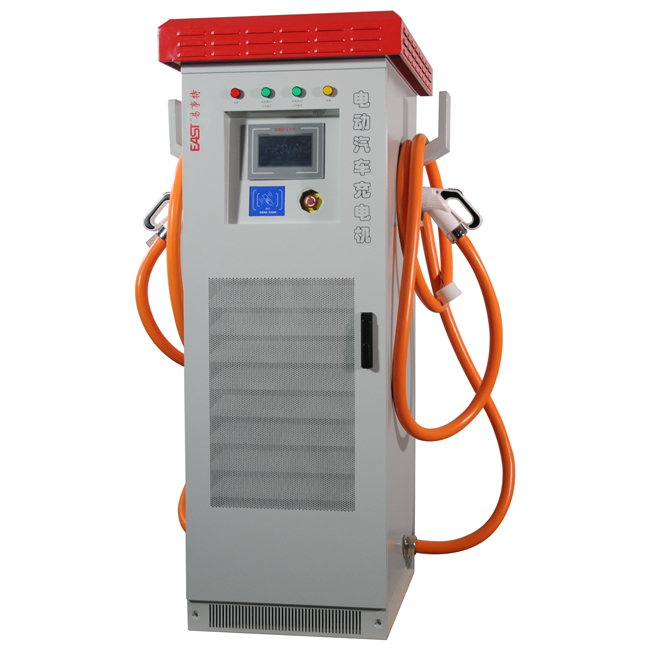

| Outdoor All-In-One High-Power Electric Vehicles Charger |
| Outdoor All-In-One High-Power Electric Vehicles Charger is used for electric vehicle charging power supply of distributed charging network. It can deploy charging network rapidly and effectively, providing high-power charging service for electric vehicles. The Outdoor All-In-One High-Power DC Charger consists of charging connector, rectifier modules and charging control billing system. Each rectifier cabinet has 10*15KW high voltage DC charging modules. It is applicable to urban traffic charging stations, expressway charging stations and enterprises’ parking lot etc. |
● Comply with the latest standard of NB/T 33008.1-2013 and GB/T 27930-2015, GB/T 18487.1-2015, and passed the highest harsh classification test.
● Selectable multi-manner, single gun charging function, dual-gun charging function, dual-gun synchronous charging function and power distribution function.
● High power density, high efficiency, high power factor, lowest THDI, no need extra reactive power compensation and harmonic suppression equipment.
● Modular design with hot-swap function, convenient maintenance, no power-off during maintenance.
● Superior protection features such as input / output over/under voltage protection, short-circuit protection, reverse- polarity protection, and automatic test of insulation fault etc.
● Support remote communication control for the charger via PC and APP.
|
MODEL |
EVDC-120KW-5YHW-2T |
EVDC-120KW-7YHW-2T |
EVDC-150KW-7YHW-2T |
| INPUT | |||
|
Input voltage |
260 V ~ 456 V (three phase five wire) |
||
|
Input current |
≤ 300 A |
||
|
AC input frequency |
45 Hz ~ 65 Hz |
||
|
Efficiency |
≥ 95% |
||
|
Power factor |
≥ 0.99 |
||
|
Input THD |
≤ 5% |
||
| OUTPUT | |||
|
Output voltage range |
200 V ~ 500 V |
300 V ~ 750 V |
300 V ~ 750 V |
|
Rated output current |
300 A |
200 A |
|
|
Max. output current |
360 A |
240 A |
|
|
Soft start time |
3 s ~ 8 s |
||
|
Output constant-current range |
10% ~ 100% |
||
|
Voltage regulation accuracy |
≤ ± 0.2% |
||
|
Current regulation accuracy |
≤ ± 0.5% |
||
|
Ripple coefficient (peak value) |
≤ 1% |
||
|
Current-sharing unbalanced degree |
≤ ±3% (50% ~ 100% rated load) |
||
|
Noise |
< 65 dB |
||
| PROTECTIONS | |||
|
Output short-circuit protection |
Retraction current ≤ 40% Io; auto-restorable |
||
|
Output overvoltage protection |
No output after protection; |
||
|
Input over / under voltage protection |
No output after protection; auto-restorable |
||
|
Phase-lack protection |
No output after protection; auto-restorable |
||
|
Overtemperature protection |
No output after protection; auto-restorable |
||
| CHARGING CONFIGURATION AND STANDARD | |||
|
Charging plug number |
2 |
||
|
Charging cable length |
5 m |
||
|
Communication protocol standard |
GB/T 27930-2015 |
||
|
Charger standard |
GB/T 18487.1-2015, GB/T 20234.1-2015, GB/T 20234.3-2015, NB/T 33001-2010, NB/T 33008.1-2013 |
||
| OTHERS | |||
|
Operating temperature |
-20℃ ~ + 50℃ |
||
|
Storage temperature (℃) |
-40℃ ~ + 80℃ |
||
|
Relative humidity |
≤ 95% |
||
|
Atmospheric pressure (kPa) |
70 kPa ~ 106 kPa |
||
|
IP rating |
IP54 |
||
|
Dimensions (H × W × D) (mm) |
1800 × 600 × 800 |
||
|
Weight (kg) |
≤ 300 |
||
