| Split-type DC Charging Equipment |

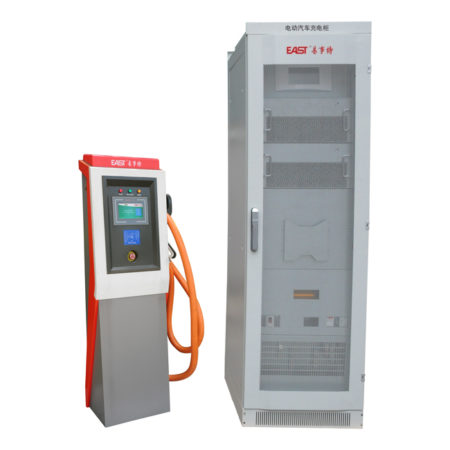

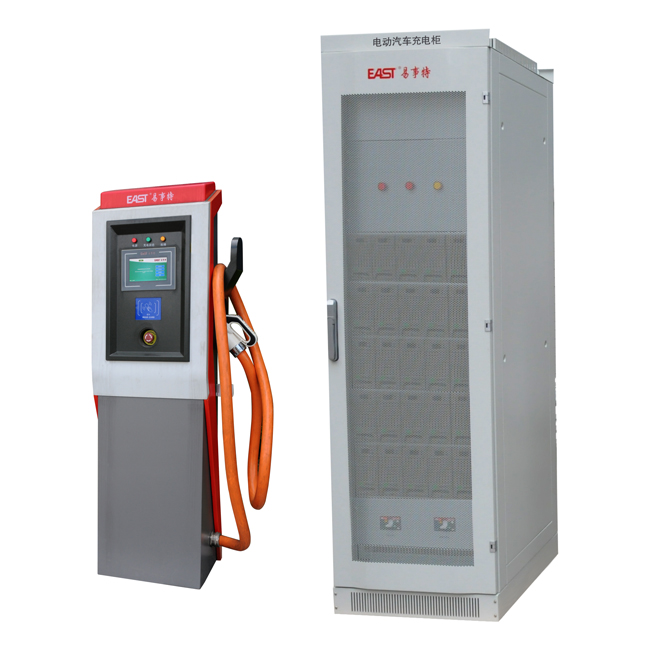

| Split-type DC charging equipment is used for electric vehicle charging power supply of centralized charging network. It can deploy charging network rapidly and effectively, providing high-power charging service for electric vehicles. It consists of rectifier cabinet and outdoor charging terminals. Each rectifier cabinet can be installed maximum 14pcs rectifier modules. It is applicable to charging stations and enterprises’ parking lot.
Split-type DC charger I: Output voltage range DC 200 V ~ 500 V adjustable, the maximum output power of single unit is 210KW. Split-type DC charger II: Output voltage range DC 300 V ~ 750 V adjustable, the maximum output power of single unit is 210KW |
● Modular design meets different capacity requirement, and rectifier modules with three-phase active APFC dynamic regulation module having excellent airduct design, and realizes integrated protection for rectification, control, output and measurement etc.
- Superior protection includes AC overvoltage / under voltage, output overvoltage / undervoltage, overcurrent, short-circuit, overtemperature, overload, reverse-battery, inrush current surge protections etc. dule having excellent airduct design, and realizes integrated protection for rectification, control, output and measurement etc.
|
MODEL |
EVDC-210KW-5 |
|
INPUT |
|
|
Input voltage |
260 V ~ 456 V (three phase five wire) |
|
Input current |
≤ 360 A |
|
AC input frequency |
45 Hz ~ 65 Hz |
|
Efficiency |
≥ 95% |
|
Power factor |
≥ 0.99 |
|
Input THD |
≤ 5% |
|
OUTPUT |
|
|
Output voltage range |
500 Vdc series: 200 V ~ 500 V |
|
Rated output current (500 V) |
420 V |
|
Rated output current (700 V) |
280 V |
|
Max. output current (500V) |
504 V |
|
Max. output current (700V) |
336 V |
|
Soft start time |
3 s ~ 8 s |
|
Output constant-current range |
10% ~ 100% |
|
Voltage regulation accuracy |
≤ ± 0.2% |
|
Current regulation accuracy |
≤ ± 0.5% |
|
Ripple coefficient (peak value) |
≤ 1% |
|
Current-sharing unbalanced degree |
≤ ±3% (50% ~ 100% rated load) |
|
Noise |
< 65 dB |
|
PROTECTIONS |
|
|
Output short-circuit protection |
|
|
Output overvoltage protection |
No output after protection; |
|
Input over / undervoltage protection |
No output after protection; auto-restorable |
|
Phase-lack protection |
No output after protection; auto-restorable |
|
Overtemperature protection |
No output after protection; auto-restorable |
|
CHARGING CONFIGURATION AND STANDARD |
|
|
Charging plug number |
/ |
|
Charging cable length (m) |
/ |
|
Communication protocol standard |
GB/T 27930-2015 |
|
Charger standard |
GB/T 18487.1-2015, GB/T 20234.1-2015, GB/T 20234.3-2015, NB/T 33001-2010, NB/T 33008.1-2013 |
|
OTHERS |
|
|
Operating temperature |
-20℃ ~ + 50℃ |
|
Storage temperature |
-40℃ ~ + 80℃ |
|
Relative humidity |
≤ 95% |
|
70 kPa ~ 106 kPa |
|
|
IP rating |
IP31 |
|
Dimensions (H × W × D) (mm) |
2000 × 600 × 600 |
|
Weight (kg) |
≤ 270 |
