Specification
| MODEL | PV30-1KW MPK | PV30-1.5KW MPK | PV30-2KW MPK | PV30-3KW MPK | PV30-4KW MPK | PV30-5KW MPK | PV30-6KW MPK | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Default Battery System Voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 24VDC/48VDC | 24VDC/48VDC | 24VDC/48VDC | ||||||||
| INVERTER OUTPUT | Rated Power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||||||||
| Surge Rating (20ms) | 3KW | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | ||||||||||||
| Capable Of Starting Electric Motor | 1HP | 1HP | 1HP | 2HP | 2HP | 3HP | 3HP | ||||||||||||
| Waveform | Pure sine wave/ same as input (bypass mode) | Pure sine wave/ same as input (bypass mode) | |||||||||||||||||
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(+/-10% RMS) | 100V/110V/120VAC 220V/230V/240VAC |
220V/230V/240VAC | ||||||||||||||||
| Output Frequency | 50Hz/60Hz +/-0.3 Hz | 50Hz/60Hz +/-0.3 Hz | |||||||||||||||||
| Inverter Efficiency(Peak) | >88% | >88% | |||||||||||||||||
| Line Mode Efficiency | >95% | >95% | |||||||||||||||||
| Power Factor | 0.8 | 1.0 | |||||||||||||||||
| Typical Transfer Time | 10ms(max) | 10ms(max) | |||||||||||||||||
| AC INPUT | Voltage | 120VAC/230VAC | 230VAC | ||||||||||||||||
| Selectable Voltage Range | 96~132VAC 155~280VAC(For Personal Computers) | 96~132VAC/155~280VAC(For Personal Computers) | |||||||||||||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) 40-80Hz | 50HZ/60HZ (Auto sensing) 40-80Hz | |||||||||||||||||
| BATTERY | Minimum Start Voltage | 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, ) | 20.0VDC~21.0VDC /40.0VDC~42.0VDC | ||||||||||||||||
| Low Battery Alarm | 10.5VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 21.0VDC+/-0.6V /42.0VDC+/-1.2V | |||||||||||||||||
| Low Battery Cutoff | 10.0VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 20.0VDC+/-0.6V /40.0VDC+/-1.2V | |||||||||||||||||
| High Voltage Alarm | 16.0VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 32.0VDC+/-0.6V /64.0VDC+/-1.2V | |||||||||||||||||
| High Battery Voltage Recover | 15.5VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 31.0VDC+/-0.6V / 62.0VDC+/-1.2V | |||||||||||||||||
| Idle Consumption-Search Mode | <25W when power saver on | <50W when power saver on | |||||||||||||||||
| AC CHARGER | Output Voltage | Depends on battery type | Depends on battery type | ||||||||||||||||
| Charger AC Input Breaker Rating | 10A | 30A | 30A | 30A | 40A | ||||||||||||||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC, ) | 31.4VDC/62.8VDC | |||||||||||||||||
| Maximum Charge Current | 35A | 20A | 45A | 25A | 65A | 35A | 75A | 45A | 65A | 35A | 70A | 40A | 75A | 50A | |||||
| BYPASS & PROTECTION |
Input Voltage Waveform | Sine wave (grid or generator) | Sine wave (grid or generator) | ||||||||||||||||
| Nominal Input Frequency | 50Hz or 60Hz | 50Hz or 60Hz | |||||||||||||||||
| Overload Protection (SMPS Load) | Circuit breaker | Circuit breaker | |||||||||||||||||
| Output Short Circuit Protection | Circuit breaker | Circuit breaker | |||||||||||||||||
| Bypass Breaker Rating | 10A | 15A | 30A | 30A | 40A | ||||||||||||||
| Max Bypass Current | 30Amp | 40Amp | |||||||||||||||||
| SOLAR CHARGER | Maximum PV Array Power | 600W | 1200W | 600W | 1200W | 600W | 1200W | 600W | 1200W | 1600W | 3200W | 1600W | 3200W | 1600W | 3200W | ||||
| Maximum PV Charge Current | 40A | 60A | |||||||||||||||||
| DC Voltage | 12V/24V atuo work | 24V/48V atuo work | |||||||||||||||||
| MPPT Range @ Operating Voltage | 16~100VDC | 32~145VDC @ 24V / 64~145VDC @ 48V | |||||||||||||||||
| Maximum PV Array Open Circuit Voltage | 100VDC | 145VDC | |||||||||||||||||
| Maximum Efficiency | >90% | >98% | |||||||||||||||||
| Standby Power Consumption | <2W | <2W | |||||||||||||||||
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | Wall mount | ||||||||||||||||
| Dimensions (W*H*D) | 423*247*197mm | 597x247x197mm | |||||||||||||||||
| Net Weight (Solar CHG) kg | 18.3 | 22 | 23.5 | 23 | 28 | 27 | 39.6 | 48.6 | 48.6 | ||||||||||
| Shipping Dimensions(W*H*D) | 554*372*312mm | 743*372*312mm | |||||||||||||||||
| Shipping Weight (Solar CHG) kg | 21.9 | 24.8 | 26.5 | 25.6 | 31 | 30 | 43.3 | 53 | 53 | ||||||||||
| OTHER | Operation Temperature Range | 0°C to 40°C | |||||||||||||||||
| Storage Temperature | -15°C to 60°C | ||||||||||||||||||
| Audible Noise | 60dB MAX | ||||||||||||||||||

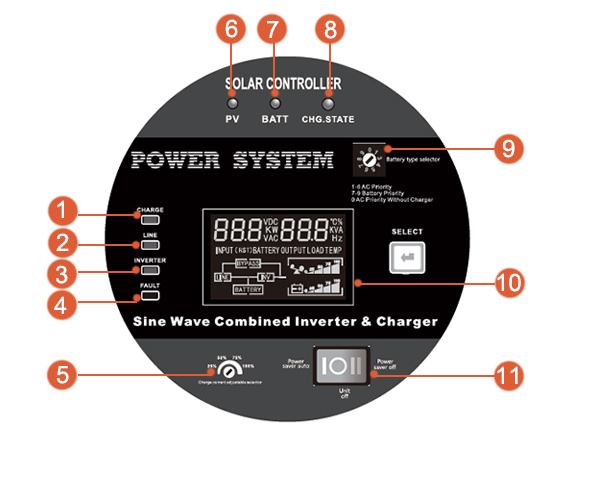

| Display | LED+LCD | ||||||||||||||||||
