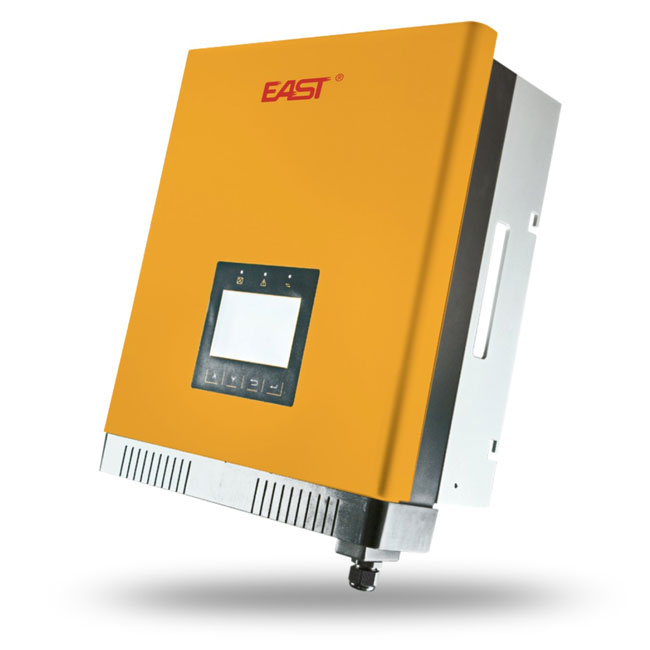

Leírás
● Built-in GPRS (optional)
- Built-in Wi-Fi (optional)
- External inductance favorable for heat dissipation
- Smaller and lighter, only 22Kg
- High performance DSP for algorithm control
- VDE-AR-N 4105 certification
- New topology, maximum efficiency 98.2%, Europe efficiency 97.5%
- Dual MPPT design
- Waterproof and dustproof (IP65) design
- Convenient and rapid operation with touch-key design
- Control module with bi-directional power supply of DC and AC
- Anti-shading function, suitable for complicated installation environment
| MODEL |
EA5KTL |
EA6KTL |
EA8KTL |
| INPUT (DC) | |||
| Max. input power |
5150 W |
6150 W |
8200 W |
| Max. input voltage |
1000 V |
1000 V |
1000 V |
| Nominal DC voltage |
640 V |
640 V |
640 V |
| MPPT voltage range |
150 V ~ 800 V |
150 V ~ 800 V |
150 V ~ 800 V |
| Full-load MPPT voltage range |
260 V ~ 800 V |
280 V ~ 800 V |
360 V ~ 800 V |
| Starting voltage |
250 V |
250 V |
250 V |
| Turn-off voltage |
150 V |
150 V |
150 V |
| Max. input current (A / B) |
11 A / 11 A |
11 A / 11 A |
14 A / 14 A |
| Max. short-circuit current of each MPPT |
16 A / 16 A |
16 A / 16 A |
20 A / 20 A |
| Number of MPP trackers |
2 |
2 |
2 |
| Max. input power of each MPPT |
3000 W |
4000 W |
5000 W |
| Number of DC connection |
A:2 / B:2 |
A:2 / B:2 |
A:2 / B:2 |
| DC connection type |
MC4 connector |
MC4 connector |
MC4 connector |
| OUTPUT (AC) | |||
| Max. AC apparent power |
5000 VA |
6000 VA |
8000 VA |
| Nominal AC power |
5000 W |
6000 W |
8000 W |
| Nominal output current |
7.2 A |
8.7 A |
11.6 A |
| Nominal output voltage |
3 / N / PE; 220 / 380 V |
3 / N / PE; 220 / 380 V |
3 / N / PE; 220 / 380 V |
| Rated grid frequency |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
| Max. output current |
8.8 A |
10.7 A |
13.6 A |
| Grid voltage range |
185 V ~ 276 V |
||
| Grid frequency range |
45 ~ 55 Hz / 55 ~ 65 Hz |
||
| Power factor |
0.9 (leading), 0.9 (lagging) |
||
| THD |
< 2% |
||
| Feed in starting power |
30 W |
||
| Self-consumption (at night) |
< 1 W |
||
| Standby consumption |
< 10 W |
||
| AC connection type |
Plug-in connector |
||
| EFFICIENCY | |||
| Max. efficiency |
97.6% |
||
| Europe efficiency |
96.8% |
||
| MPPT efficiency |
99.9% |
||
| PROTECTIONS | |||
| DC insulation monitoring |
Yes |
||
| DC switch |
Optional |
||
| Residual current monitoring unit (RCMU) |
Integrated |
||
| Grid monitoring with anti-islanding |
Yes |
||
| Electricity fuse protection |
Yes |
||
| Protection class |
I (according to IEC 62103) |
||
| Overvoltage category |
III (according to IEC 62109-1) |
||
| REFERENCE STANDARD | |||
| Safety standard |
EN 62109, AS / NZS 3100 |
||
| EMC standard |
EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3 |
||
| Grid standard |
VDE-AR-N4105, VDE-0126-1-1, G83 / 1, EN 50438, RD 1699, CEI 0-21, AS4777, C10 / C11 |
||
| GENERAL DATA | |||
| Data communication interfaces |
RS485 (Wi-Fi, GPRS optional) |
||
| Computer communication |
USB |
||
| Display |
3×LED & 20 × 4 LCD |
||
| Isolation type |
Transformerless |
||
| Cooling |
Natural cooling |
||
| Noise |
< 40 dB |
||
| Operating temperature |
– 25 °C ~ + 60 °C (> 45°C derating) |
||
| Relative humidity |
0 ~ 98% non-condensing |
||
| Altitude |
2000 m |
||
| IP rating |
IP 65 (according to IEC 60529) |
||
| Installation method |
Wall-mounted |
||
| Dimensions (W×D ×H) (mm) |
352 ×172.5 × 421 |
||
| Packaged dimensions (W×D ×H) (mm) |
695 × 275 × 525 |
||
| Net weight (kg) |
24.5 |
||
| Gross weight (kg) |
28.4 |
||
