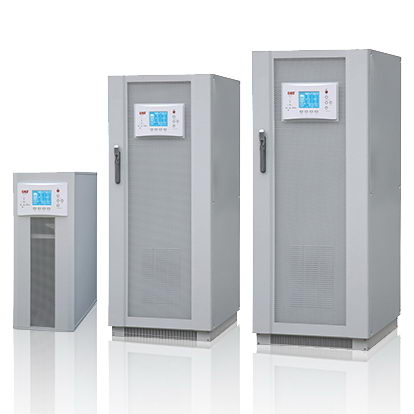

EA890 10~120KVA (3:3)EA890 series UPS is a intelligent 3 phase in 3 phase out uninterruptible power supply, it adopts double transform high frequency PWM and high performance digital control technique (DSP), with perfect protection, super network management function, reasonable man-machine interface and a series of precision design, meets all high reliability requirements of uninterruptible power supply and integrates reliable, safety, maintainability characteristics of a new generation low frequency UPS.
● Online double-conversion with full DSP control
- IGBT inverter with output isolation transformer
- 100% unbalance load capability
- Output power factor 0.9
- Generator compatible
- Support battery cold start and auto-restart when mains power is restored
- ECO mode operation for energy saving
- Superior protection
- 5.7 inches LCD touch screen, friendly human & machine interface
- Front access makes maintenance and replacement easy (40 ~ 120KVA)
- Intelligent self-diagnosing function, all kinds of failure protection, large capability of history records storage
- High MTBF (>200,000h)
- Low MTTR (<0.5h)
- Standard emergency power off (EPO)
- Standard RS232,RS485,dry contacts communication port
- Optional SNMP communication port
- Optional N+X redundancy parallel up to 6 units
- Optional input filter to improve input power factor
|
MODEL
|
EA8910
|
EA8915
|
EA8920
|
EA8930
|
EA8940
|
EA8960
|
EA8980
|
EA89100
|
EA89120
|
|
Capacity
|
10 KVA
9 KW
|
15 KVA
13.5 KW
|
20 KVA
18 KW
|
30 KVA
27 KW
|
40 KVA
36 KW
|
60 KVA
54 KW
|
80 KVA
72 KW
|
100 KVA
90 KW
|
120 KVA 108 KW
|
|
INPUT
|
|
|
Rated voltage
|
380 V / 400 V / 415 Vac
|
|
Voltage range
|
± 25%
|
|
Rated frequency
|
50 / 60 Hz
|
|
Frequency range
|
50 / 60 Hz ± 5 Hz
|
|
Power factor
|
≥ 0.95 (with filter)
|
|
Bypass voltage range
|
± 20%
|
|
Delayed start of rectifier
|
1 ~ 300 s (settable via display panel)
|
|
ECO voltage range
|
± 10% (settable)
|
|
OUTPUT
|
|
|
Voltage
|
380 V / 400 V / 415 Vac
|
|
Voltage regulation
|
± 1%
|
|
Frequency
|
Synchronized with utility in mains mode; 50 / 60 Hz ± 0.1% in battery mode
|
|
Waveform
|
Sinusoidal
|
|
Power factor
|
0.9
|
|
Crest factor
|
3:1
|
|
Total harmonic distortion(THDV)
|
≤ 2% (linear load); ≤ 5% (non-linear load)
|
|
Transfer time
|
AC mode to battery mode: 0 ms
Inverter mode to bypass mode: 0 ms
Inverter mode to ECO mode: 5 ~ 10 ms
|
|
Inverter overload capability
|
105%: long time running;
105% ~ 110%: transfer to bypass in 1 h
110% ~ 125%: transfer to bypass in 10 mins
125% ~ 150%: transfer to bypass in 1 min
150% ~ 200%: transfer to bypass in 200 ms
> 200%: transfer to bypass in 100 ms
|
|
Slight adjustment of inverter output voltage
|
± 5 V
|
|
BATTERIES
|
|
|
DC Voltage
|
12 V × configured battery number (settable via display panel)
|
|
Number of battery
|
28 ~ 32 pcs (settable)
|
|
Charging
|
Three-stage charging, auto switch floating / equalizing charge
|
|
Battery state display
|
Display battery backup time, battery remaining capacity
|
|
Battery self-test
|
Settable periodic self-test; manually configurable test time and voltage
|
|
SYSTEM
|
|
|
Efficiency
|
In line mode: Max. 93%; ECO mode: ≥ 98%
|
|
Max. Parallel numbers
|
6
|
|
Protections
|
Short-circuit – overload – overvoltage – undervoltage – low battery – overtemperature – fan fault
|
|
IP rating
|
IP20
|
|
EMI
|
EN62040-2
|
|
EMS
|
IEC61000-4-2 (ESD)
|
|
IEC61000-4-3 (RS)
|
|
IEC61000-4-4 (EFT)
|
|
IEC61000-4-5 (surge)
|
|
COMMUNICATIONS
|
|
|
RS232 / RS485 / dry contacts (standard)
|
Supports Windows 98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10
|
|
SNMP (optional)
|
Power management from SNMP manager and web browser
|
|
OTHERS
|
|
|
Humidity
|
0 ~ 95% RH @ 0 ~ 40℃ (non-condensing)
|
|
Noise level
|
55 dB
|
60 dB
|
65 dB
|
|
Dimensions (W×D×H) (mm)
|
400×800×1100
|
600×700×1500
|
700×800×1700
|
|
Packaged dimensions (W×D×H) (mm)
|
490×890×1170
|
690×790×1570
|
790×890×1770
|
|
Net / Gross weight (kg)
|
158 / 200
|
165 / 207
|
175 / 217
|
210 / 252
|
260 / 302
|
460 / 480
|
590 / 620
|
630 / 660
|
690 / 720
|
